DEM-3000JEC (TG9C)

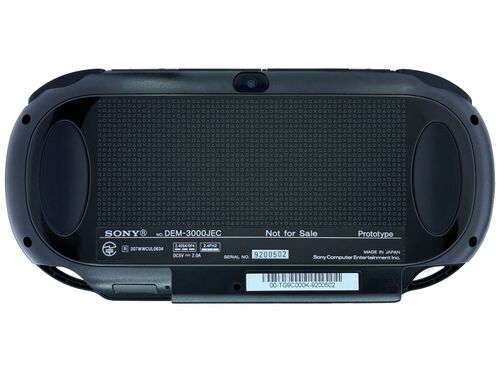

DEM-3000JEC TG9C back.jpg
Model-Code 00-TG9C000K
Motherboard: IRT-002 (0-851-973-08)
CP-Board: GCP-002 (0-851-147-07)
bid.4 ver.1301
Factory Firmware: 0.996
Firmwares:
Key Type:
SoC Revision: 4.2
eMMC size: 0xE3400000 3.55 GB
Product Subcode: 0xE
Hardware Info: 00 41 52 00
MAC OUI: 00:22:58:
Units made (approximately):
unused


The DEM-3000JEC model is a Development Kit prototype.. for European Market
"New DVT2-2"


Misc

Date Shell: 2011-08
Date Board: 2011 Week 33

ConsoleID (Example)

00 00 00 01 01 01 00 0E 04 00 XX XX XX XX XX XX
Company Code: 0x0001
Product Code: 0x0101
Sub-Code: 0x000E
Chassis: 0x0400


IDStorage String

0001,0040,0044,0001,0001,2,1,1,1,00.996_20110831_01_E,0.1.7.3_20110830_01_E,1

Gallery

  • Front

  • Back

  • CP Board

  • Motherboard

  • Backplate

Bundled Items
